Compact Front End 2 Ton Wheel Loader 1800kg Rate Load
1. Products Description
we need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.
MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification
| Model | | MCL932
ZL932 |
| Rated Load | kg | 1800 |
| Bucket Capacity | m³ | 1.0 |
| Bucket Length | m | 1.9 |
| Max.Dump Clearance | mm | 3200 |
| Dump Reach | mm | 1350 |
| Overall Size (L*W*H) | mm | 5500*1620*2750 |
| Engine Model | | YN490 Supercharged |
| Rated power | kw | 58 |
| speed/min | rpm | 2400 |
| Gear Box | | CVT |
| Alex | | S-hub reductro |
| Operating Weight | kg | 3500 |
| Frame | | Articulated |
| Tire | | 20.5-16 |
| Joystick | | Mechanical |
| Brake Type | | Air brake |
| Airconditioner | | Option |
| Hydraulic pilot | | Option |
| Running hour meter | | Option |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
- Tire:38% Rubber content tire,Wider off-road tire
- Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
- Cab:Optional ROPS/FOPS cab :flame retardant materials and EU-certified glass are used in the cab, offering higher safety.
- Complete safety signs.
- Large steps on the side of the frame also enhance accessibility.
4.Attachment
MCLLROY compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade etc.
|
|

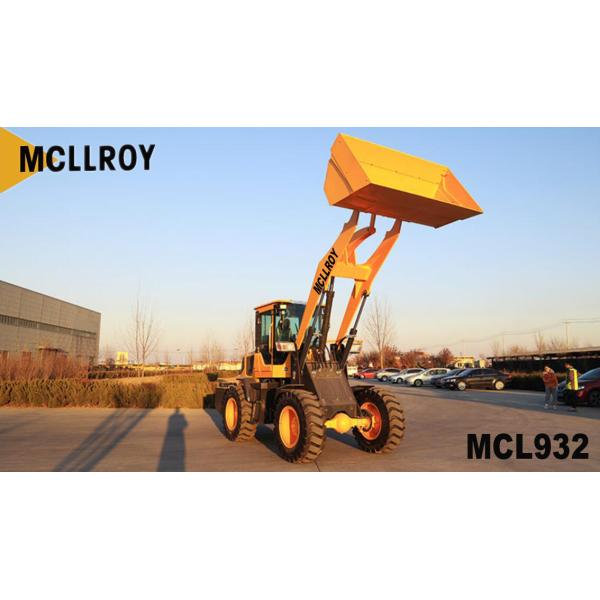

Compact Front End 2 TonWheel Loader 1800kg Rate Load Images
|
